Weather Station

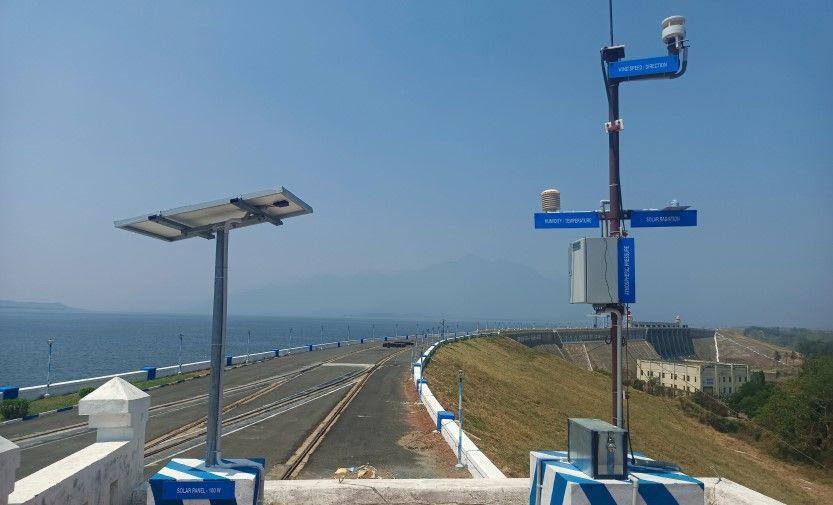

The Encardio Rite automatic weather station is a weather data management and presentation system for meteorological data collected by individual sensors from a site. The system provides a reliable and cost-effective means of recording meteorological data.

Encardio Rite offers one of the best weather systems with standard sensors for measuring essential parameters i.e. rainfall, wind velocity, relative humidity, and temperature. Other sensors are also available on request. The weather station can be configured based on the parameters to be measured or the sensors required.

The Model EAWS-101 is an automatic web-based weather monitoring system for meteorological data collected by individual sites. It handles all data processing requirements including collection & storage of data, calculating, and presenting the results in graphical form for easy understanding.

Standard sensors used in the Encardio Rite Model EAWS-101 weather station are briefly outlined below:

  • Rain gage: Tipping bucket type rain gage.
  • Wind speed and direction sensor: A cup anemometer speed sensor along with a direction sensor with a dynamically balanced wind vane gives precise wind velocity.
  • Relative humidity & temperature: Advanced humidity sensor with Pt 100 for temperature measurement.
  • Data logger: Provides unattended monitoring & recording.

The Model ERG-200/201 rain gauge is a cost-effective and secure method for measuring and recording rainfall. It is used to record unattended remote rainfall and barometer pressure. Each rain gauge is equipped with a tipping bucket mechanism with a magnet and switch assembly.

Collection of rain is through a 200 mm diameter catchment through a debris filtering screen. A funnel inside the rain gauge feeds collected rainwater into one of the two buckets. The rain gauge can also be connected to various data loggers along with multiple data retrieval and transmission options.

Rain Gauge


Model ERG-200/201

Rain Gauge

Automatic Weather Station


Model EAWS-101

Automatic Weather Station
