Langham Place Hotel and Service Apartments

The Langham Place Hotel & Serviced Apartments project in downtown Dubai involved constructing high-rise buildings with basement parking. Encardio-Rite Geosystems LLC provided comprehensive monitoring solutions, including pre-construction surveys, geotechnical and geodetic instrument installations, and automated data management systems. Key parameters monitored included surface settlement, lateral movement, water pressure changes, tilt, and MSE wall deformation. Using robotic total stations, prism target data was automatically collected and transmitted. Daily and weekly reporting with data interpretation ensured safety and construction efficiency.

Langham Place Hotel and Service Apartments

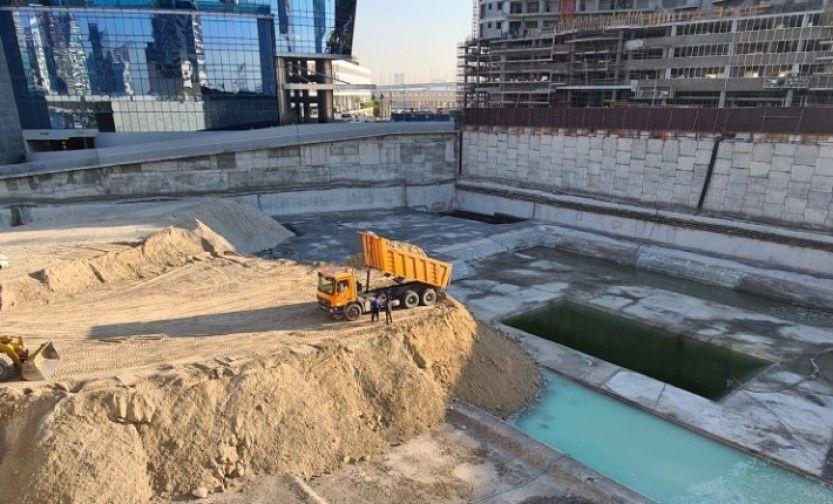

The Langham Place Hotel & Serviced Apartments is a residential property located in downtown Dubai. The project included the construction of 13 storey and 22 storey high-rise buildings along with basement parking.

A comprehensive program was undertaken before and during the construction of the project for the installation and monitoring of the subsurface and surface geotechnical instruments. The project was monitored for parameters like surface settlement, the lateral movement towards shoring, change in water level/ pressure within and outside excavation, change in load at anchors, measurements of tilt for adjacent buildings, and prism targets for MSE walls.

Encardio-rite’s subsidiary Encardio-rite Geosystems LLC in UAE was awarded an I&M sub-contract for the turnkey monitoring solutions that included:

Pre-construction survey of the existing RTA road bridge
Supply, Installation, and commissioning of geotechnical and geodetic instruments
3D movement of the MSE wall by robotic total stations
Setting up an online web-based data management system (WDMS) and maintenance during the contract period
Daily & weekly reporting, interpretation of results, and taking subsequent actions for all instrumentation associated with the project

Geotechnical instruments used for monitoring and surveying during construction activity included piezometers, standpipes, tiltmeters, anchor load cells, and prism targets. Dataloggers were used for the automatic collection and transmission of data of the geotechnical sensors. Robotic total stations were used to collect and transmit data from prism targets automatically.
